Our goods are broadly recognized and reliable by users and can meet consistently switching financial and social demands of Pole Pruning Saw, Chainsaw Wholesale, Titan Chainsaw Manufacturer, Aggressive price with top quality and satisfying support make us earned extra customers.we wish to work along with you and request common enhancement.

China wholesale Mini Chainsaw Factories – Zomax 21" self-propelled 58V Samsung Li-ion Battery brushless motor 60L Cordless lawn mower – ZOMAX Detail:

Overview

Quick Details

Grade:: DIY, Industrial

Warranty:: 6 month

Voltage:: 58V

Power:: 1700

Customized support:: OEM

Place of Origin:: Zhejiang, China

Brand Name:: ZOmax

Model Number:: ZMDM541

Power Source:: Electric

New product

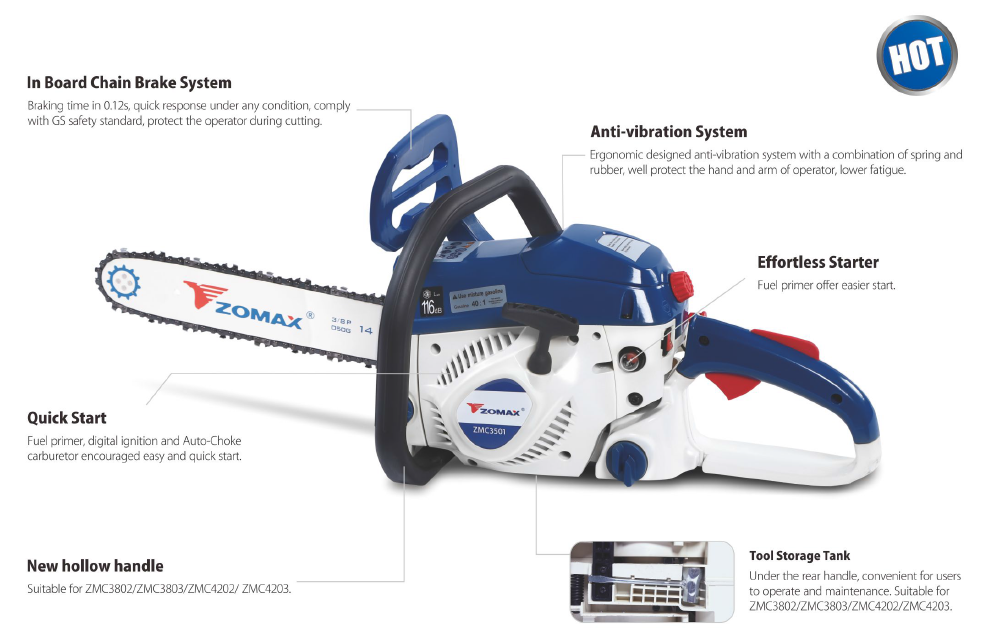

ZMC3501 CE GS emc EUII EPAIII

35.2cc / 1.2kw / 4.6kg

Stratified scarvenging engine give to comformity with EUII emssion standards. Braking time in 0.12s, quick response under any condition, comply with GS standards, protect the operator while cutting.Ideally for wood and branch cutting.

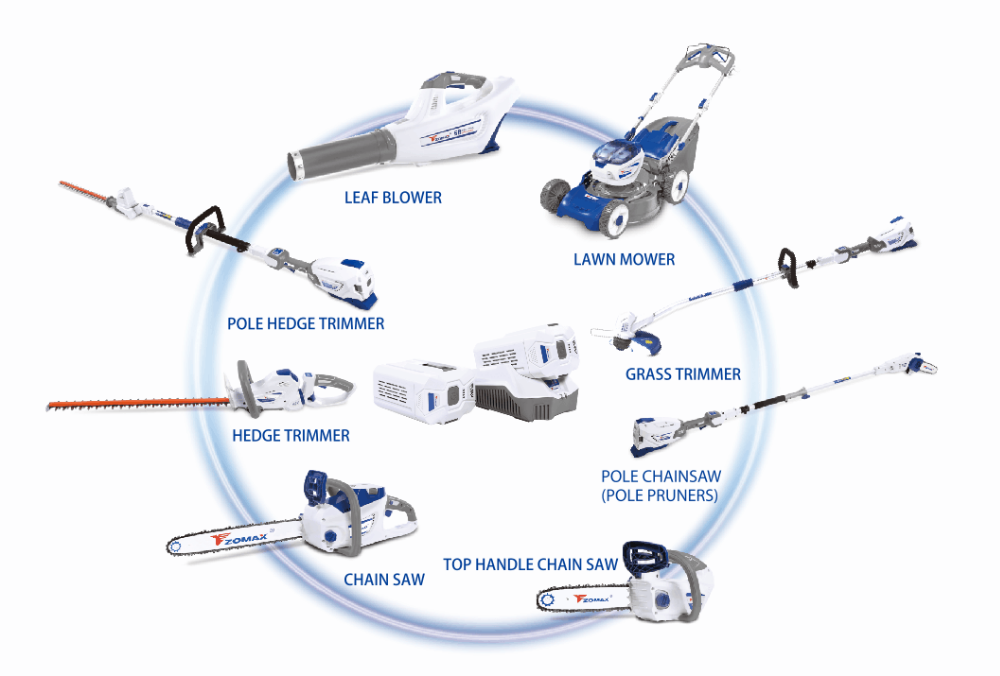

Cordless Family

Product Description

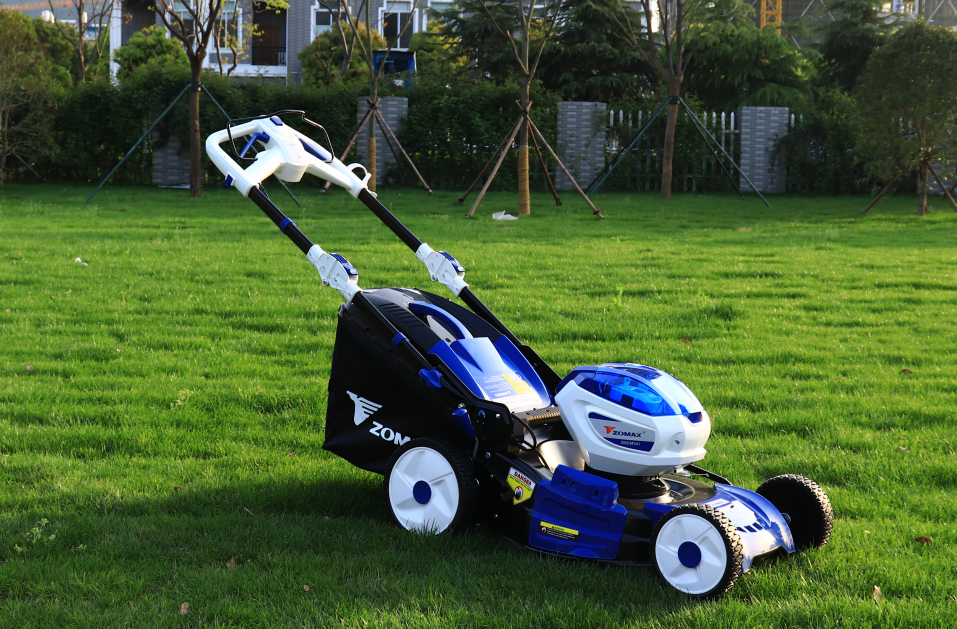

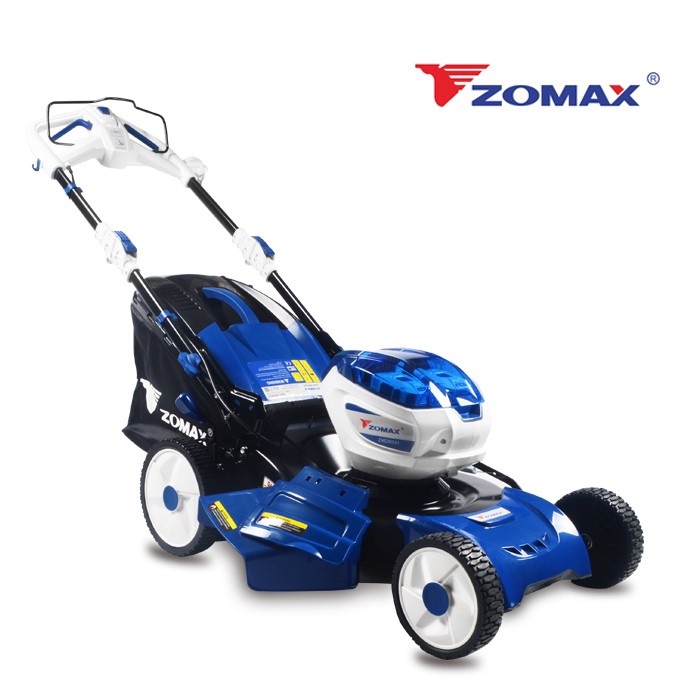

ZMDM541 58V 21″ CORDLESS LAWN MOWER

Motor type —- BLDC

Standard Battery —– 4.0Ah *2

Weight —– 25kg

Cordless lawn mower – Zomax 21″ self-propelled 4in1 58V Samsung Li-ion Battery brushless motor 60L robot lawn mower

Description	Lawn Mower-4AHx2pcs
Model	ZMDM541
Cret.	CE/GS、cTUVus
Motor Type	BLDC(Brushless motor)
Power（KW）	1.8KW
Output Power(kw)	1.4kw
Battery Nominal Voltage	58 V
Battery Rated Voltage	50.4 V
Battery Type	Li-Ion
Recommand Battery Capacity	4.0 Ahx2pcs
Cutting Capacity	21”
Self-propelled Type	Motor Control
Self-propelled Speed	0.8-1.4m/s(4 Settings)
Cutting Deck Type	Steel
No-loading Run Time(with Self-propelled)	Up to 90 min.
Cutting Speed Control	Automative Variable Speed
No-loading Speed	2900-3500rpm
Cut-height Setting	1-3.5” Cut-height Positions
Level Handle”	1.95 m/s2
Sound Power Level	92 dB(A）
Weight(tool only)	About 25kgs/ 55 pounds
Weight(with 4.0Ah battery)	About 28.5 kg/ 62.8 pounds
Warranty(Year)	2 years

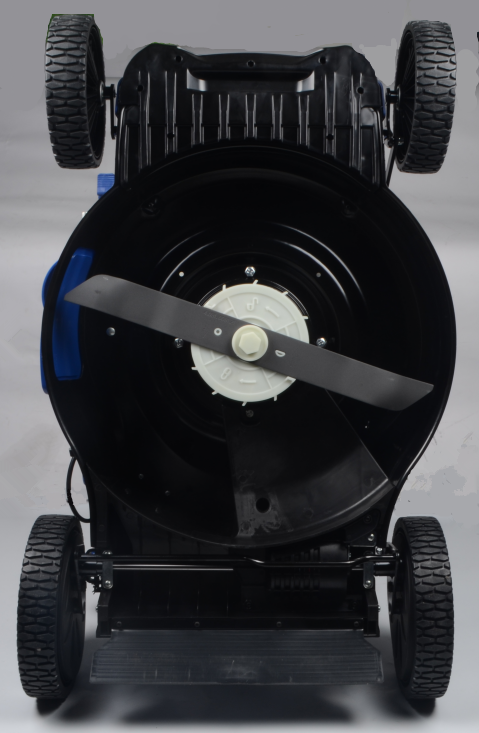

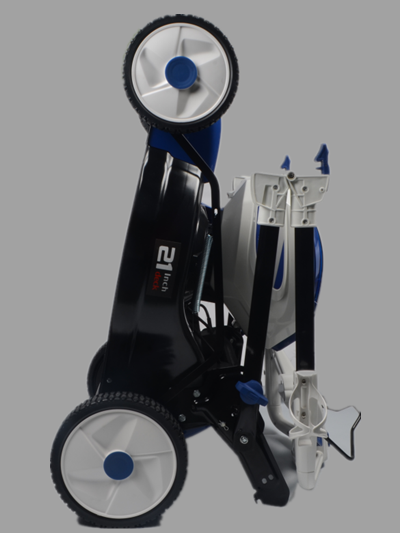

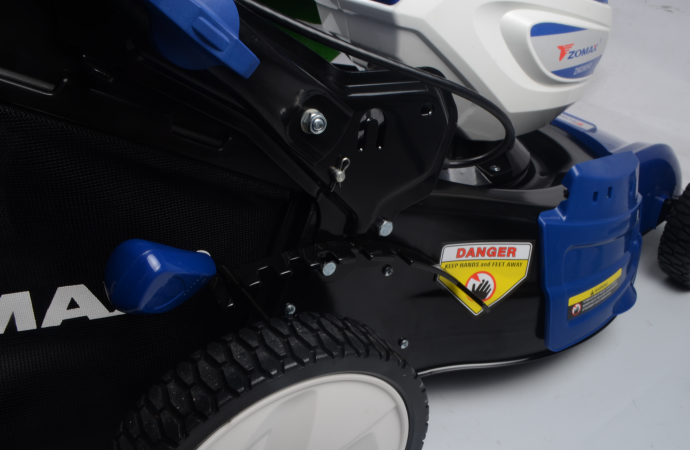

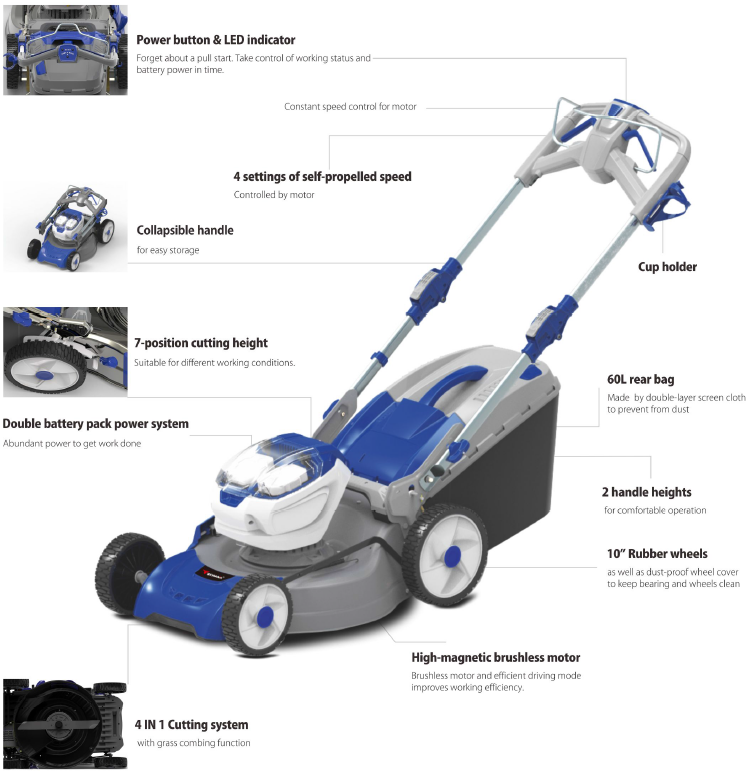

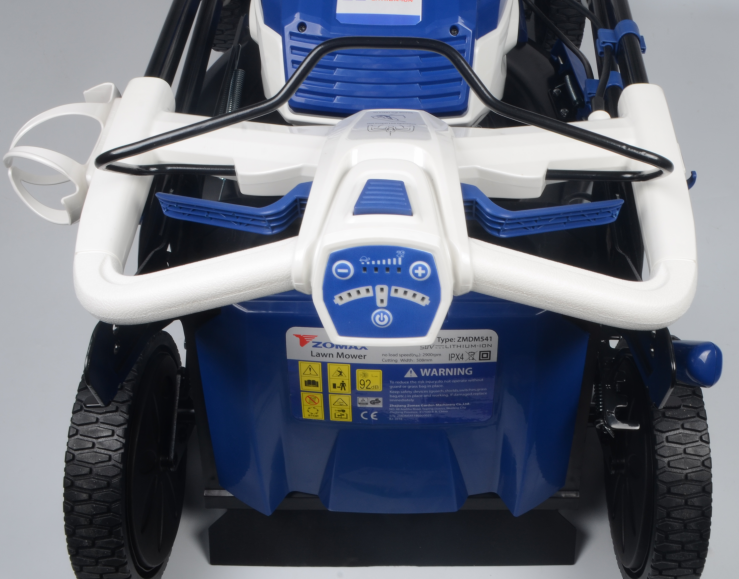

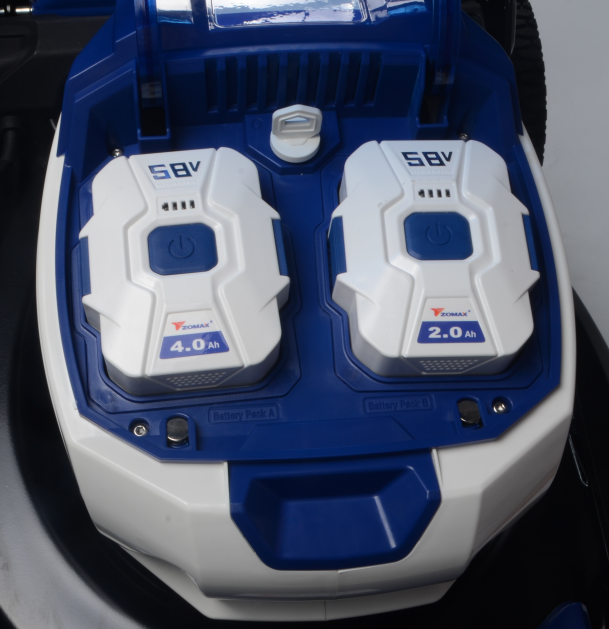

Detailed Images

Batteries & Charger

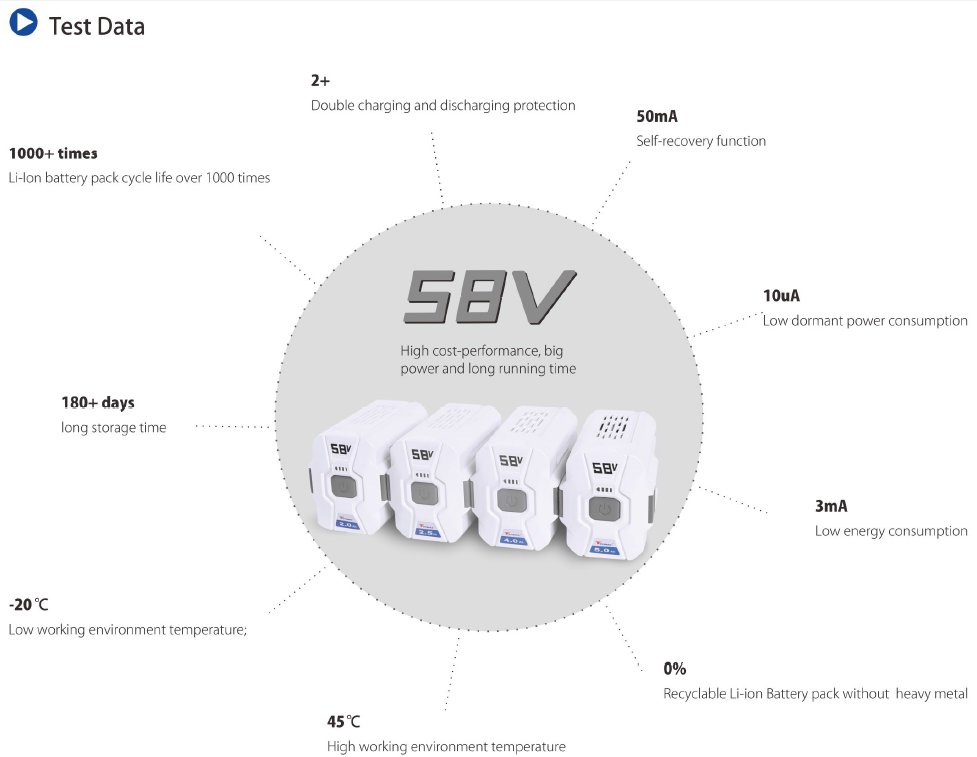

58V Lithium-Ion Battery Pack

1. Good BMS（Battery Management System）system：battery pack uses internationally well-known IC, microcontroller, fuse.
2. Offer protection from overcharging, overheating, overloading, and battery equalization process;
3. Use imported Samsung 18650 Lithium-Ion Cell with good consistency, continuous large current discharge and long lifespan;
4. With Low-power mode from Sleep which can prevent the battery damage if battery has not been charged for a long time;
5. Offer equalization repair process for battery over-discharge, to prolong battery lifespan.
6. Work under temperature from -20℃ to 45℃.
7. Offer high& low temperature protection for battery to prolong battery lifespan.
8. Integrated charging status display.
9. Fade-free power with no memory loss after charging.

Model	ZMLB5120	ZMLB5140	ZMLB5125	ZMLB5150
Cert.	CE、cULus	CE、cULus	CE、cULus	CE、cULus
Transport Report or RoHs	UN38.3 Report / SDS Report / RoHs Report
Cell	Samsung	Samsung	Samsung	Samsung
Battery Nominal Voltage	58 V
Standard	58V DC. 2.0Ah	58V DC. 4.0Ah	58V DC. 2.5Ah	58V DC. 5.0Ah
Recharge Time	1 h	2 h	1.25 h	2.5 h
Working Environment Temp.	-20℃- 45℃
Dimension	114x94x172cm
Weight	1.2 kgs / 2.6lbs	1.8 kgs / 3.9lbs	1.2 kgs / 2.6lbs	1.8 kgs / 3.9lbs
Warranty	2 years	2 years	2 years	2 years

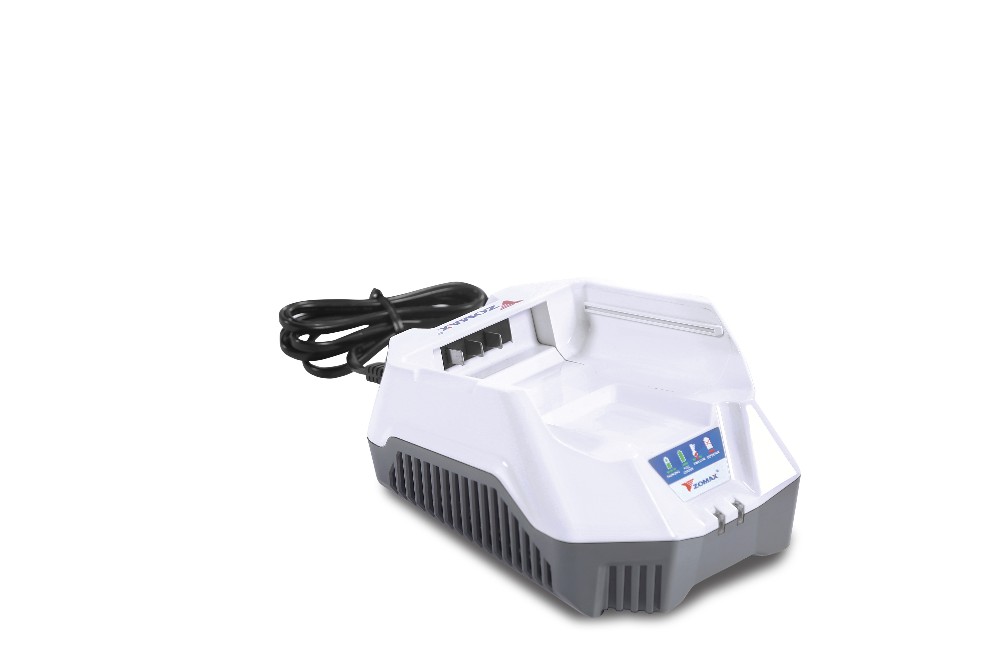

58V 2.0A Lithium-Ion Battery Charger

- Compatible with all Zomax 58V Lithium-Ion tools and batteries;
- Integrated charging status display

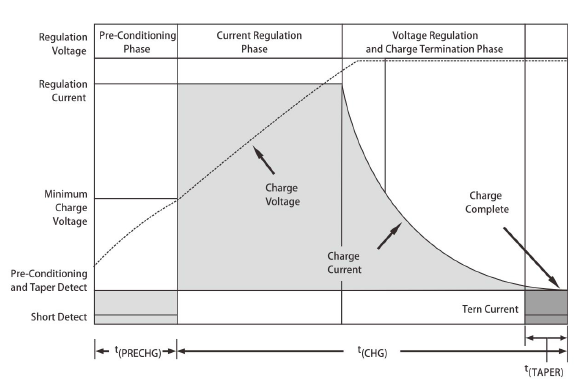

Normal charging mode：
Trickle charge detection -> constant current charge -> constant voltage charge -> charge terminates

Equilibrium repair charging mode：
Trickle charge detection -> constant current charge
-> constant voltage charge （equilibrium repair）-> charge terminates

Description	Li-Ion Charger
Model(CE/GS)	ZMLC5120E
Model(cULus)	ZMLC5120U
Model(AS/NZS)	ZMLC5120A
Cert.	CE/GS、cULus、RCM
Standard	58V DC. 2A
Input(CE/GS、AS/NZS)	220V-240V~,50Hz, 1A
Input(cULus)	120V~,50Hz-60Hz, 2.5A
Output	58V DC. 2.0A
Working Environment Temp.	0℃- 45℃

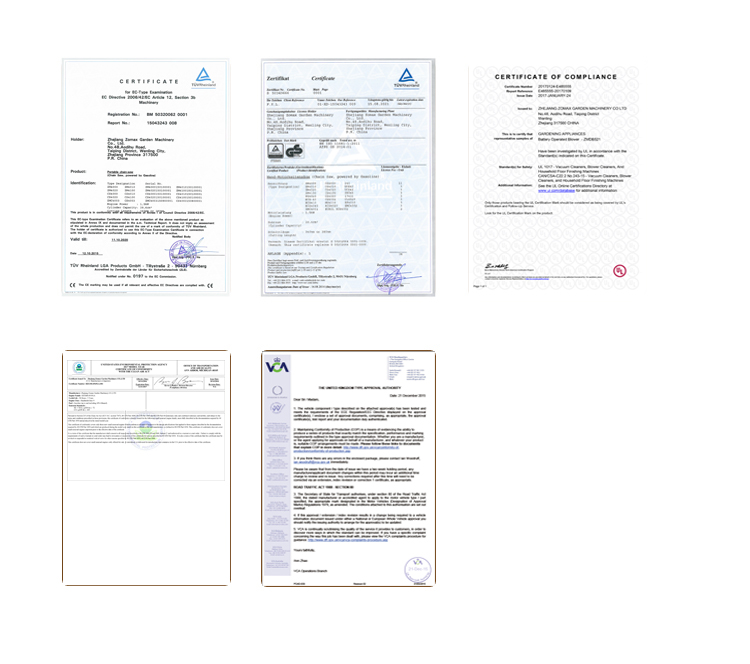

Certifications

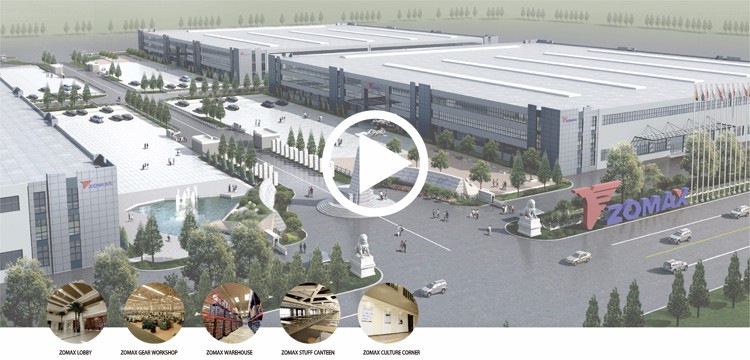

Our Company

Product detail pictures:

Related Product Guide:

To become the stage of realizing dreams of our employees! To build a happier, much more united and far more professional team! To reach a mutual profit of our clients, suppliers, the society and ourselves for China wholesale Mini Chainsaw Factories – Zomax 21" self-propelled 58V Samsung Li-ion Battery brushless motor 60L Cordless lawn mower – ZOMAX , The product will supply to all over the world, such as: Puerto Rico, Myanmar, Indonesia, In the new century, we promote our enterprise spirit "United, diligent, high efficiency, innovation", and stick to our policy"basing on quality, be enterprising, striking for first class brand". We would take this golden opportunity to create bright future.
