OEM High Quality Self Propelled Mower Manufacturers – 53cc low emission petrol brush cutters toyama mowing for European market – ZOMAX Detail:

Overview
Quick Details

Place of Origin:
Zhejiang, China
Brand Name:
ZOMAX brush cutter
Model Number:
ZMG5301T brush cutter
Cutting Type:
Straight Metal Blade
Feature:
2-Stroke, Folding Handle, Forced Air Cooling, Single Cylinder, Telescopic Handle
Power Source:
Petrol/Gasoline
Power Type:
Petrol / Gas
Engine:
2 stroke
Standard accessory 1:
Nylon head 2 line
Standard accessory 2:
Blade in 3 teeth
Standard harness:
06-H single harness
Carburetor:
Walbro or chinese
Warranty:
six months for semi-professional user
Ignition system:
CDI
Starter:
fuel primer under cool environment
Power and speed:
with high torch
Certification:
ISO9001:2000

ZOMAX Brush Cutters and Grass Trimmers

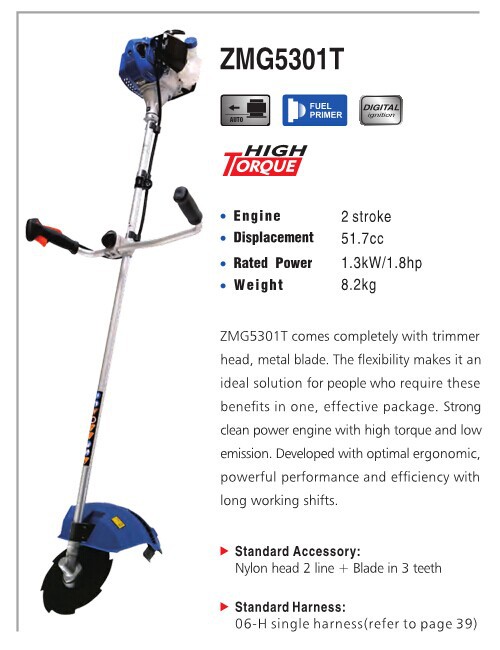

ZMG2601T / ZMG3301T / ZMG4301T / ZMG5301T



53cc low emission petrol brush cutters toyama mowing for European market



Model ZMG5201T
Bore(mm) φ44
Stroke(mm) 34
Displacement(ml) 51.7
Rated Power(kW) 1.3
Max Speed(rpm) 9,000
Idel Speed(rpm) 3,000 ± 300
Fuel Tank Capacity(ml) 1,000
Dry Weight(kg) 8.2
Transmission System clutch+hard shaft+gearbox
Working Shaft Lengths(mm) 1,500
Line Head Trimmer(mm) 430
Line Shape Round
Line Dia.(mm) 2.5
Cut Blade(mm) 255
Blade Thickness(mm) 1.4/2.0
Working Shaft Dia.(mm) 26
Drive Shaft Dia.(mm) 8
Shaft Teeth 9
measurement 184*30*30/11cm



      Key Features

  • Low emission type.
  • Extremely easy starting with fuel primer.
  • Multi-use guard (for line and blade use).
  • Bearing solid steel drive shaft.
  • Metal fuel tank protector.
  • Rapid acceleration.
  • Low vibration clutch design.

53cc low emission petrol brush cutters toyama mowing for European market

53cc low emission petrol brush cutters toyama mowing for European market

53cc low emission petrol brush cutters toyama mowing for European market

1.Trouble Free Starting
The design of the engine and recoil starter ensure the machine can be start quickly with minimum effort,getting your working more efficient.
2.Fuel Primer Pump
More effortless start can gain with the help of fuel primer pump.
3.Big Load Clutch
The big load clutch can meet the high requirement of long time work by the long straw rope and large diameter blade.
4.Efficient Air Filtration System
The efficient air filtration system can effectively reduce the cost of machine maintenance,as well as reduce the loss of the engine.
5.Ergonomic Designed Handle
The handle design is in line with the man-machine engineering principle,easy operation,energy saving,especially suitable for large area lawn.
6.Solid Rods
Solid rods connect the operator with the transmission,burst out peak power.
7.Combined Shelter
Combined shelter,simple “slide to secure”blade design takes few seconds to replace trimmer to cutter.
