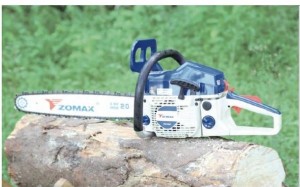

ZM5200

Short Description:

Deliver excellent cutting performance,start easily and work with various features which make your operation comfortable and flexible.ldeal for light cutting work including smaller trees and firewood.

DISPLACEMENT: 49.8CC

POWER OUTPUT: 2.0KW/ 2.7 hp

DRY WEIGHT: 5.0kg

Send email to us

Product Detail

Product Tags

Model ZM4000 ZM4600 ZM4680 ZM5200 ZM5280 ZM5800
Displacement	39.6 Cc	45.6 cc	45.6 cc	49.8 cc	49.8 cc	54.0 cc
Rated Power	1.5 kW/20hp	1.8 kW/2.4 hp	1.8kW/2.4 hp	2.0 kW/27 hp	2.0 kW/27hp	2.2 kW /3.0 hp
Bore/Stroke	①41/30 mm	φ43/31 mm	①43/31 mm	φ45/31 mm	φ45/31 mm	φ45.2/34mm
Dry Weight	4.3 kg	4.9 kg	4.9 kg	5.0 kg	5.0 kg	5.1 kg
Carburetor	Diaphragm type	Diaphragm type	Diaphragm type	Diaphragm type	Dianhyaam type	Diaphragm type
lgnition System	CDIDIGITAL	CDI	CDI	CD	CDI	CDI
Max Speed	11,000 rpm	11,000 rpm	11.000 rpm	11,000 rpm	11,000 rpm	11.000 rpm
ldle Speed	3.300 ± 400 rpm	3.300± 400 rpm	3,300 ± 400 rpm	3.300±400 rpm	3,300±400 rpm	3,300± 400 rpm
Fuel Capacity	410 m	520 ml	520ml	520 ml	520m	520 m
Oil Capacity	240 ml	260 ml	260 ml	260 ml	260 ml	260 ml
Oil & Fuel Ratio	1:40	1:40	1:40	1:40	1:40	1:40
Bar Lengths	12”(28cm)14”(34cm16”(34cm)	16”(40cm)8 4520°(50cm	16″(40cm)8”(45cm)20(50cm	16′(40cm)18”(45cm)20(50cm	16”(40cm)18”(45cm)209(50cm	16”(40cm)18”(45cm)20”(50cm)
