ZMC4003

Short Description:

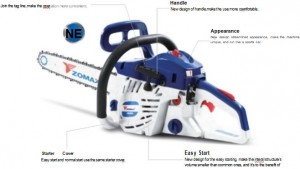

The kernel component has upgrade,like cylinder, crankcase bearing, oil seal, muffler, manifold and so on, bring you different feelings when sawing. New appearance make you feel fresh and cool. The engine has improved, power become higher, fuel consumption become lower, and it reduces the temperature

DISPLACEMENT: 39.6 CC

POWER OUTPUT: 1.6KW / 2.2hp

DRY WEIGHT: 4.3kg

Send email to us

Product Detail

Product Tags

Model ZMC4003 ZMC4650 ZMC5050 ZMMC545
Displacement	39.6 cc	45.6 cc	49.8 cc	54.0 cc
Rated Power	16kW/22hp	1.8kW/2.4 hp	20K/27hp	2.2 kW/3.0 hp
Bore/Stroke	φ41/30 mm	φ43/31 mm	φ45/31 mm	φ45.2/34 mm
Dry Weight	4.3 kg	4.9 kg	50kg	5.1 kg
Carburetor	Diaphragm type	Dlaphragm type	Diaphragm type	Diaphragm type
gnition System	CDI/DIGTAL	CDI	CDI	CDI
Max Speed	11000 rpm	11.000 rpm	11.000 rpm	11,000 rpm
Idle Speed	3,300 ± 400 rpm	3,300 ± 400 rpm	3,300 ± 400 rpm	3,300 ± 400 rpm
Fuel Capacity	480 m	520 m	520ml	520 ml
Oil Capacity	240 m	260 ml	260ml	260 ml
Oil & Fuel Ratio	1:40	1:40	1:40	1:40
Bar Lengths	12“(28cm)/14”(34cm)/16”(38cm)	16″(4Ccm)/18″(45cm)/20”(50cm	16”(40cm)/18”(45cm)/20”(50cm)	6“(40cm)/18”(45cm)/20”(50cmì
